उत्पाद विवरण:
|
| Name: | 3.5 Inch IPS TFT LCD Display | Resolution: | 320x240 |
|---|---|---|---|
| Outline dimension: | 76.90*63.9*3.26mm | Active area: | 70.08 x 52.56mm |
| Interface: | 24-bit RGB | Viewing angle: | 80/80/80/80 |
| Brightness: | 350cd/m2 | Display mode: | TFT,Normally Black |
| Operating temperatures: | -20 to 70 degree | Storage temperatures: | -30 to 80 degree |

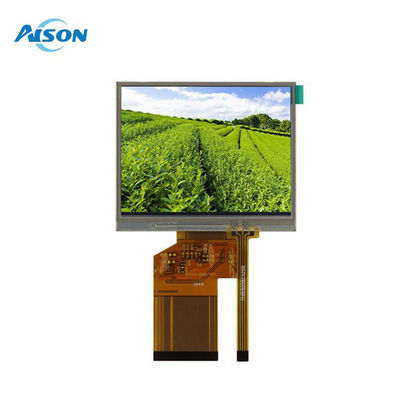

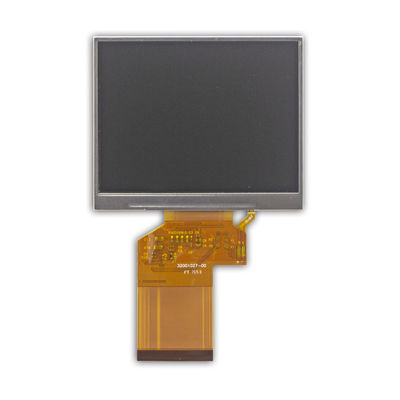

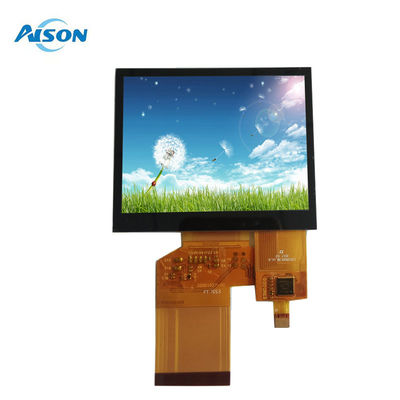

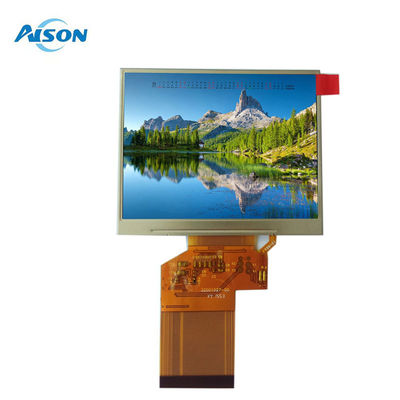

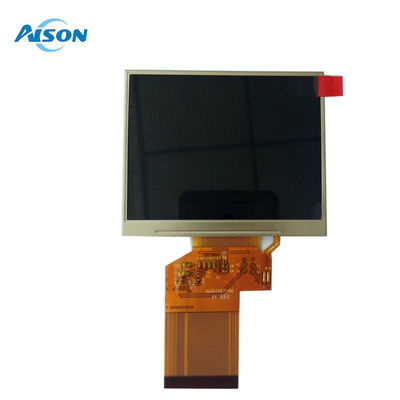

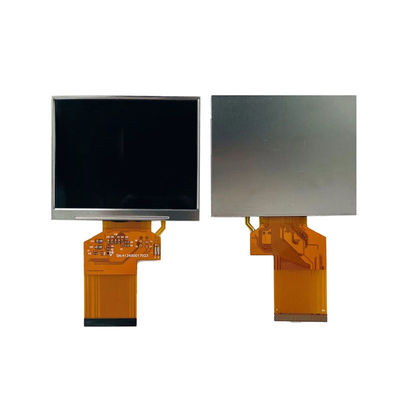

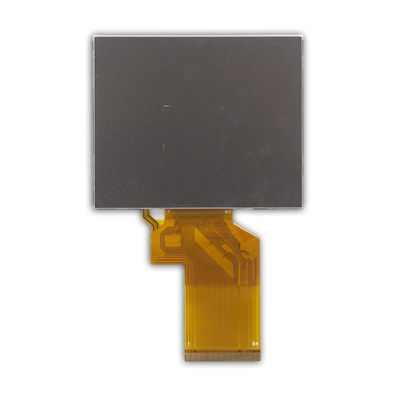

3.5-inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
General Data
| Model Name | 3.5 inch IPS TFT Display |
| Resolution | 320x240 |
| Model Size (W*H*T) | 76.90*63.9*3.26mm |
| Display Area (W*H) | 70.08 x 52.56mm |
| Interface | RGB 24 bit |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 350 cd/m2 |
| Pin number | 40 pin |
| Driver IC |
ST7272A |
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 3.5 inch IPS TFT Display can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface.
