उत्पाद विवरण:
|
| एलसीएम प्रकार: | 2 इंच MCU TFT LCD मॉड्यूल | संकल्प: | 240x320 |
|---|---|---|---|
| मॉड्यूल आकार: | 34.6*47.8*1.9 मिमी | एए आकार: | 30.6x 40.8 मिमी |
| इंटरफ़ेस: | एमसीयू | चमक: | 200 सीडी/एम2 |
| दिशा देखें: | सभी | चालक नियंत्रक: | ILI9341V |
| कार्य तापमान: | -20 से 70 डिग्री | भंडारण तापमान: | -30 से 80 डिग्री |

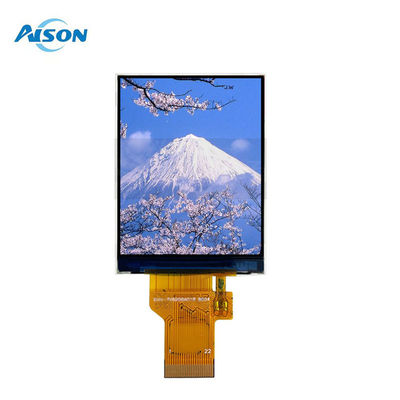

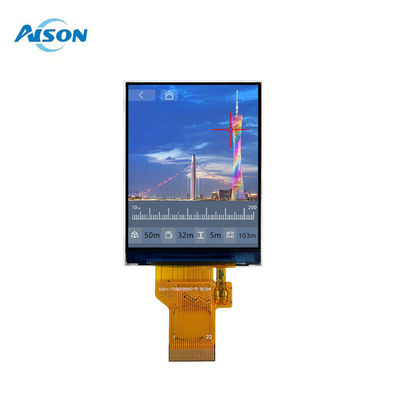

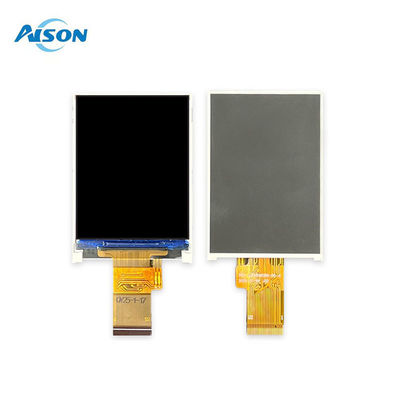

2 Inch IPS TFT LCD Display 240x 320 Resolution MCU Interface ILI9341V Driver IC
Z020Q01 is a 2-inch Portrait Mode IPS TFT-LCD with a resolution of 240x320 pixels. Built with ILI9341V driver IC with MCU interface.
Z020Q01 has a wide viewing angle of Left: 80/ Right: 80/ Up: 80/ Down: 80 degree, a contrast ratio of 250:1, a brightness of 200 nits.This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.
The 2-inch portrait mode TFT LCD display is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment, sports watches, and other electronic device
General Data
| Model Name | 2 inch MCU LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) | 34.6*47.8*1.9mm |
| Display Area (W*H) | 30.6x 40.8mm |
| Interface | MCU |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 200 cd/m2 |
| Pin number | 30 |
| Drive IC | ILI9341V |
| BACKLIGHT TYPE | 3 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The 2 inch portrait mode TFT LCD Module is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment,
